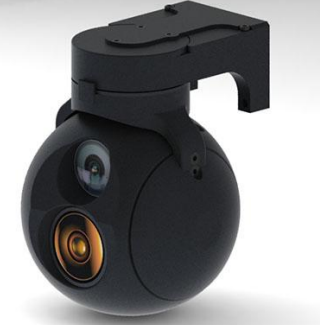

Mini Dual-light Gimbal (PLD80)
Integrating 8mm prime lens EO sensor and un-cooled 18mm prime lens IR sensor, PLD80 Mini gimbal only weighs 280g at two-axis structure. Target tracking function and digital stabilization enables the gimbal to track any shaped moving target under complex backgrounds, and makes gimbal very suitable for seekers, unmanned aerial vehicles in applications such as anti-terrorism, surveillance, pipeline detection etc.
- IRSEEN
- Shenyang, China
- 20 working days
- 100 sets per month (Looking for distributors)
- Information
- Download
Mini Dual-light Gimbal (PLD80)
Introduction
Integrating 8mm prime lens EO sensor and un-cooled 18mm prime lens IR sensor, PLD80 Mini gimbal only weighs 280g at two-axis structure. Target tracking function and digital stabilization enables the gimbal to track any shaped moving target under complex backgrounds, and makes gimbal very suitable for seekers, unmanned aerial vehicles in applications such as anti-terrorism, surveillance, pipeline detection etc.
Features
RS232 control, network video output
8mm prime lens EO+ 18mm prime lens IR
Tracking function
14~28V power input
Dimmension
Parameters
EO sensor | |
Sensor | CMOS (domestic made) |
Size of pixel | 3.0μm |
Resolution and frequency | 1920H×1080V @60fps |
Lens | 8mm |
FOV | 38°×21° |
IR sensor | |
Detector | Un-cooled domestic made (8μm~14μm) |
Size of pixel | 12μm |
Resolution and frequency | 640×512@60fps |
Lens | 18mm |
FOV | 24°×18° |
Color palette | Black hot, white hot, color |
Tracker | |
Frequency | 60Hz |
Contrast ratio of min target | 5% |
Target size | 16*16~128*128 pixels |
Tracking speed | ±48 pixels/frame |
Effective distance | |
EO | ≥3.6km（vehicle 6.5*3） |
IR | ≥1km（vehicle 6.5*3） |
Interface | |
Video output | NET：UDP/RTSP (422 optional） |
Control | RS232（422 optional）, Ethernet |
Power | 14～28V |
Power consumption | average≤12W, max≤20W |
Environment feasibility | |
Working temperature | -40℃～+60℃ |
Storage temperature | -40℃～+60℃ |
Structure | |
Pan | +90°～-90° |
Tilt | +30°～-120° |
Size | 77×78×83 mm |
Weight | ≤280g |
